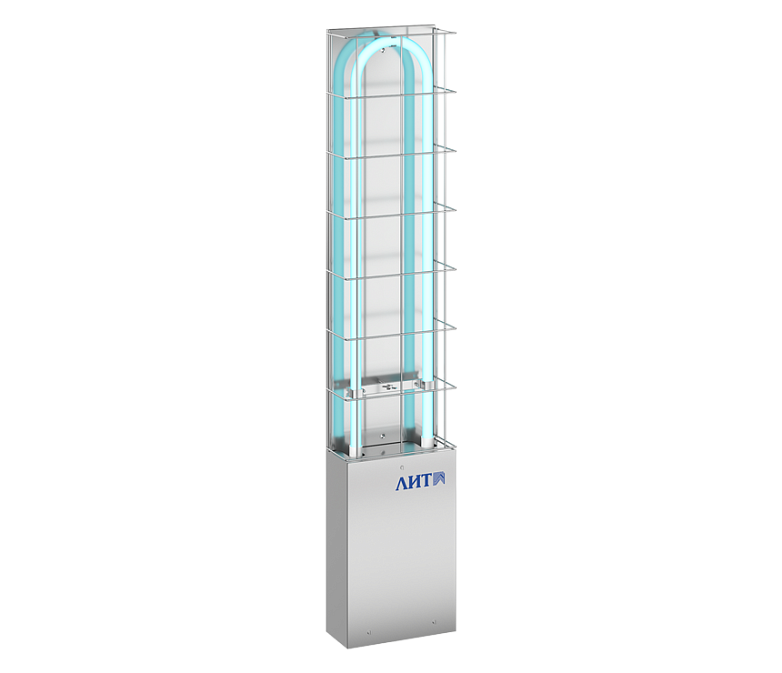

SVETOLIT-90N

SVETOLIT-90N

Wall-mounted bactericidal irradiator for food processing facilities

  • Power 300 W
  • Washable
  • Safe ozone-free amalgam UV lamp
The main advantages of the series:
01 /
High UV power

Allows you to quickly achieve the UV dose required for disinfection.

02 /
High degree of dust and moisture protection

Protection degree IP 54 allows you to wash surfaces on which the illuminator is fixed SVETOLIT-90N.

03 /
High-quality stainless steel

Stainless steel construction is resistant to chemical cleaning agents and disinfectants.

04 /
No liquid mercury

Application of amalgam technology of UV-lamps manufacturing excludes mercury contamination of the room, even in case of UV-lamp breakage. Used UV lamps are hazard class III wastes according to the Federal classification catalogue of wastes.

Technical specifications:
S. aureus indicator 99,9%,
14 min. / 60 m³
Treatment time / room volume
48 min. / 60 m³
Total bacterial count(TBC) indicator 99.9 %,
300
Treatment time / room volume
IP 54
Power consumption, W, not more than
Wall-ceiling
Degree of protection
3
Installation type
173×90×1075
Weight of the irradiator, kg, not more than
Overall dimensions, L×W×H, mm
Description:

UV-irradiators of SVETOLIT group are designed for air and surface disinfection in the absence of humans and animals in premises with high requirements to microbiological cleanliness: food, pharmaceutical and cosmetic industries and other premises in order to reduce the number of microorganisms in the air and on surfaces and prevent infectious diseases.

Hermetic design SVETOLIT-90H allows effective use of UV-irradiator in food production facilities, where frequent washing of walls is required.

For rooms with complex configuration, with columns or oversized equipment, we recommend to contact our design department to select the optimal placement of UV-irradiators.

SVETOLIT-90N on the objects

Yalta, Russia. 2021. Swimming pool.
Russia
Yalta, Russia. 2021. Swimming pool. 60 m3/day
Shchyolkovo, Russia. USC.
Russia
Shchyolkovo, Russia. USC. 400 000 m3/day
PHI "Central Clinical Hospital "RZD-Medicine"
Moscow, Russia
Jeonju, South Korea. 2005. USC.
South Korea
Jeonju, South Korea. 2005. USC. 1210 000 m3/day
Herentals, Belgium. OSV.
Belgium
Herentals, Belgium. OSV. 38 400 m3/day
Khabarovsk, Russia. 2017. OSV.
Russia
Khabarovsk, Russia. 2017. OSV. 250 000 m3/day
France. 2014. OSC.
France
France. 2014. OSC. 30 500 m3/day
Pharmaceutical production, Moscow, Russia.
Russia
Pharmaceutical production, Moscow, Russia. 609 m3/day
Pharmaceutical production, Bulgaria.
Bulgaria
Pharmaceutical production, Bulgaria. 100 m3/day
 Tehran, Iran. 2023 USC.
Russia
Tehran, Iran. 2023 USC. 520 000 m3/day
