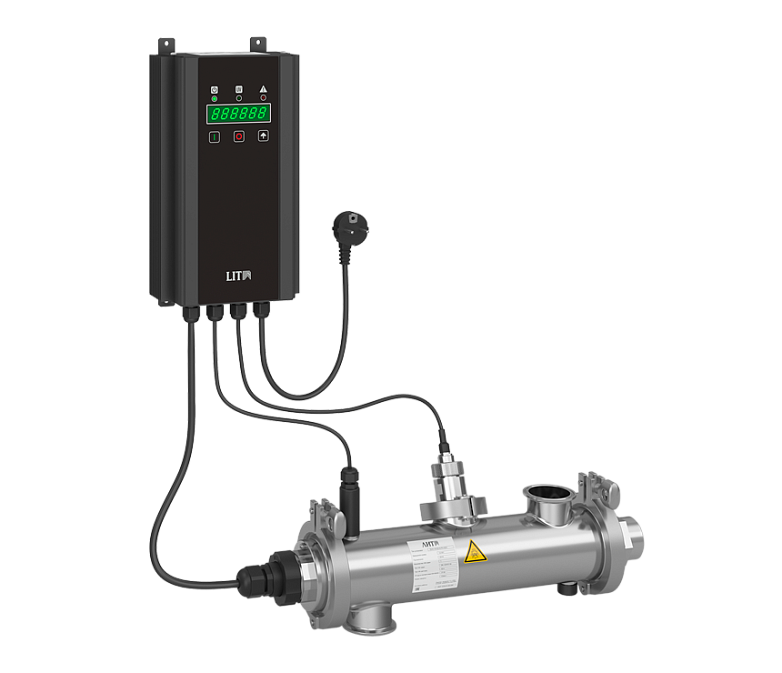

LENA Group series ADV PH
Series of compact single-lamp units with a capacity of up to 25 m³/h in a special design
- Compliance with GMP regulations
- Higher degree of internal surface treatment (Ra 0.4-0.8 μm)
- UV lamp lifetime up to 16,000 hours
- Selective UV sensor certified according to ÖNORM standard
Fully collapsible 316L steel construction with clamp connections
The decontamination chamber is prepared for CIP-washing including hot water and steam sanitisation.
Temperature sensor integrated in the automatic shutdown system. Quartz cover protecting the lamp from water entry, complete with factory sealing ensures tight seals.
Remote switching on/off of the unit by means of a discrete signal.

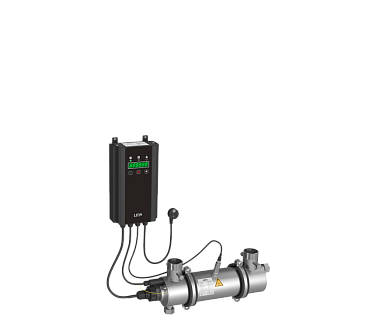

ADV is a series of compact single-lamp units with a capacity of up to 25 m³/h, with UV intensity control system, remote control in a special design in accordance with the requirements of GMP (Good Manufacturing Practice) and industry regulations.
Depending on the type of production process, silicone, NBR, EPDM, Viton or PTFE O-rings can be used in the clamp connections.
On request, the UV disinfection chamber can be made of more corrosion-resistant steel grades: 316Ti, Duplex.
Compactness and high protection class allow to place UV units practically in any production premises, and remote control and monitoring possibilities provide easy integration of UV units into SCADA-system of the whole enterprise.
In case of membrane technology application it is recommended to install UV disinfection both before the membrane to exclude its overgrowing with microorganisms and after - to create an additional disinfection barrier in case of membrane integrity destruction.
